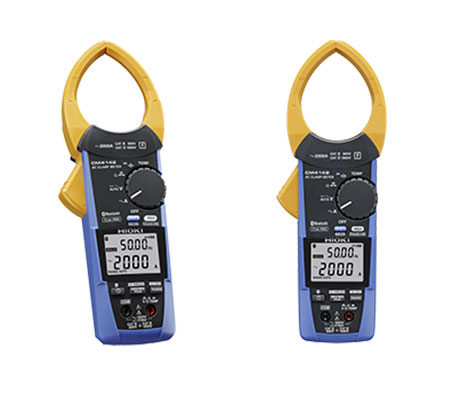

Hioki AC Clamp Meter – Model CM4142

In stock

Hioki AC Clamp Meter

Innovative Current Sensor Design, Easily Get Into Tight Spaces

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4142 is a 2000A AC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter. The broad -25℃ to 65℃ operating temperature range and IP50 dustproof and waterproof enclosure to enable professionals to work quickly in crowded electrical distribution panels. The high current measurement capability makes it especially useful for industrial applications. Use the built-in Bluetooth wireless technology to wirelessly send measurement data to mobile devices and create reports. CAT IV 600 V CAT III 1000 V Key Features • Easily get into tight spaces between cables thanks to thin sensor with a minimum cross-section span of 11 mm • Measure up to 2000 A AC • AC A, AC and DC V, DC+AC V, resistance, frequency, temperature, and more • Expanded -25 °C to 65 °C operating temperature range • Send measured values to a smartphone or tablet using Bluetooth® wireless technology (CM4142 only) Data can be downloaded to tablets and smartphones using Hioki’s dedicated apps available from the Google Play or App Store. Search for “HIOKI” and download the “GENNECT Cross” app. Hioki AC Clamp Meter Dealers, Distributors in Dubai UAE.

HVAC Spare Parts Supplier in Dubai UAE

Hioki supplier in Dubai UAE.

We are AC Spare Parts Wholesaler, Distributor and Supplier of Hioki AC Clamp Meter – Model CM4142 in Dubai UAE.

SKU: CM4142 Category:
AC Current range 60.00 A to 2000 A, 3 ranges (45 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A
Crest factor For the 60.00 A range: 2.5 (greater than 50.00 A and less than or equal to 60.00 A) to 2000 A range: 1.5 (2000 A or less)
DC Voltage range 600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)
AC Voltage range 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±0.9% rdg. 0.003 V (at 6 V)
DC+AC Voltage range 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45-66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
Resistance range 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
Electrostatic capacity range 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
Frequency range Voltage: 9.999 Hz to 999.9 Hz 3 ranges, Current: 99.99 Hz to 999.9 Hz 2 ranges, Basic accuracy: ±0.1% rdg. ±0.01 Hz (at 99.99 Hz)
Temperature (K) -40.0 to 400.0 ˚C, Basic accuracy: ±0.5% rdg. ±3.0 ˚C + temperature probe accuracy
Other functions Continuity check, Diode check, Automatic AC/ DC detection (Voltage check only), Max/ Min/ AVG/ Peak waveform MAX/ Peak waveform MIN value display, Low-pass filter function, Display value hold, Backlight, Auto power save, Buzzer sound, Zero-adjustment, and other function
Dustproof, waterproof IP20 (Current measurement of voltage or hazardous live conductors under completely dry condition)
IP50 (When measuring or storing the resistance of a completely dry state or the current of an insulated conductor), However, dustproof and waterproof design equivalent to IP54 only on the handheld part and in a non-measurement state.
Interface Bluetooth® 4.0LE, Supported devices: iOS, Android™ smartphone/tablet
GENNECT Cross (free downloadable app): Display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save function
Power supply LR03 Alkaline battery ×2, Continuous use: 24 hr (Backlight OFF, Bluetooth® ON)
Core jaw diameter φ55 mm (2.17 in), Jaw dimension: 82 mm (3.23 in) W × 11 mm (0.43 in) D (D dimension is a range value of 44 mm (1.73 in) from the tip of the jaw)
Jaw cross-section Minimum dimension 11 mm (0.43 in) (Range value of 44 mm (1.73 in) from the tip of the jaw)
Dimensions and mass 65 mm (2.56 in) W × 247 mm (9.72 in) H × 35 mm (1.38 in) D, 300 g (10.6 oz)
Accessories TEST LEAD L9207-10 ×1, CARRYING CASE C0203 ×1, LR03 Alkaline battery ×2, Instruction Manual ×1, Usage notes ×1, Caution on using radio waves ×1 (CM4142 only)

Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki AC Clamp Meter Dealers, Distributors in Dubai UAE.
