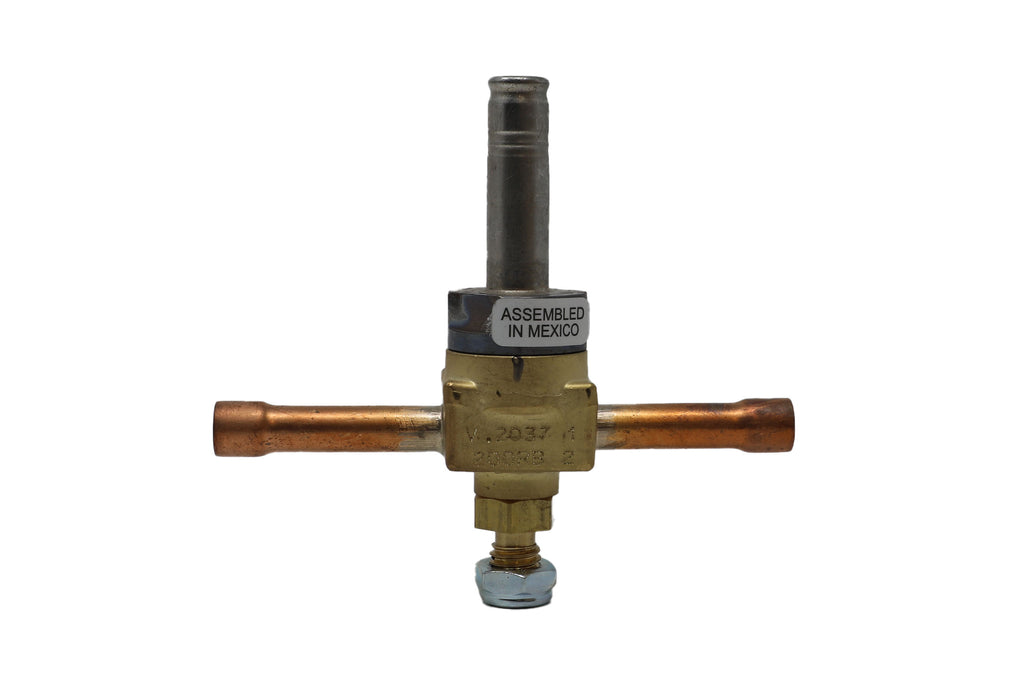

Copeland White-Rodgers 200RB 2T3VLC, Pilot-Operated Refrigerant Solenoid Valve, 3/8” ODF

In stock

AC Spare Parts Dealer in Dubai

Solenoid Valves supplier in Dubai UAE.

We are AC Spare Parts Wholesaler, Distributor and Supplier of Copeland White-Rodgers 200RB 2T3VLC, Pilot-Operated Refrigerant Solenoid Valve, 3/8” ODF in Dubai UAE.

Category:

Copeland White-Rodgers 053106 200RB 2T3VLC, 200RB Series Pilot-Operated Refrigerant Solenoid Valve, 3/8” ODF

The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.

Technical Description:

200RB pilot-operated solenoid valve, 2-way, normally closed for liquid, discharge, or suction gas refrigerant service, port size 2 (1/8″), inlet connection 3/8″ odf extended, outlet connection 3/8″ odf extended, body style straight thru, coil vlc

Features and Benefits

  • One coil fits all valve sizes
  • Extended ends for easy installation (standard)
  • Long-life molded coils
  • PTFE O-ring for superior external sealing



Catalog Page

Instructions

Capacity Tables

Field Drawings



Specifications

Valve Type: Pilot Operated, 2-Way, Normally Closed
Port Size: 1/8″
Inlet Connection Size:
3/8” ODF Extended End
Outlet Connection Size: 3/8” ODF Extended End
Special Feature: Standard Valve
Maximum Fluid Temperature: 250°F
Maximum Working Pressure: 680 psig
Minimum Operating Pressure Drop: 2 psi
MOPD: 300 psig
Approvals: UL/CUL File Number MP604
